Goodbye traditional gates! Smart gates help you save time and energy!
Still struggling with the cumbersome operation of traditional gates? It's time for your gate to have a smart change! Shandong Obiao intelligent measurement and control gate is tailor-made for you to pursue high efficiency, energy saving and environmental protection, making water management, aquaculture, agricultural irrigation and other scenarios become easy and intelligent.
Remote control at your fingertips

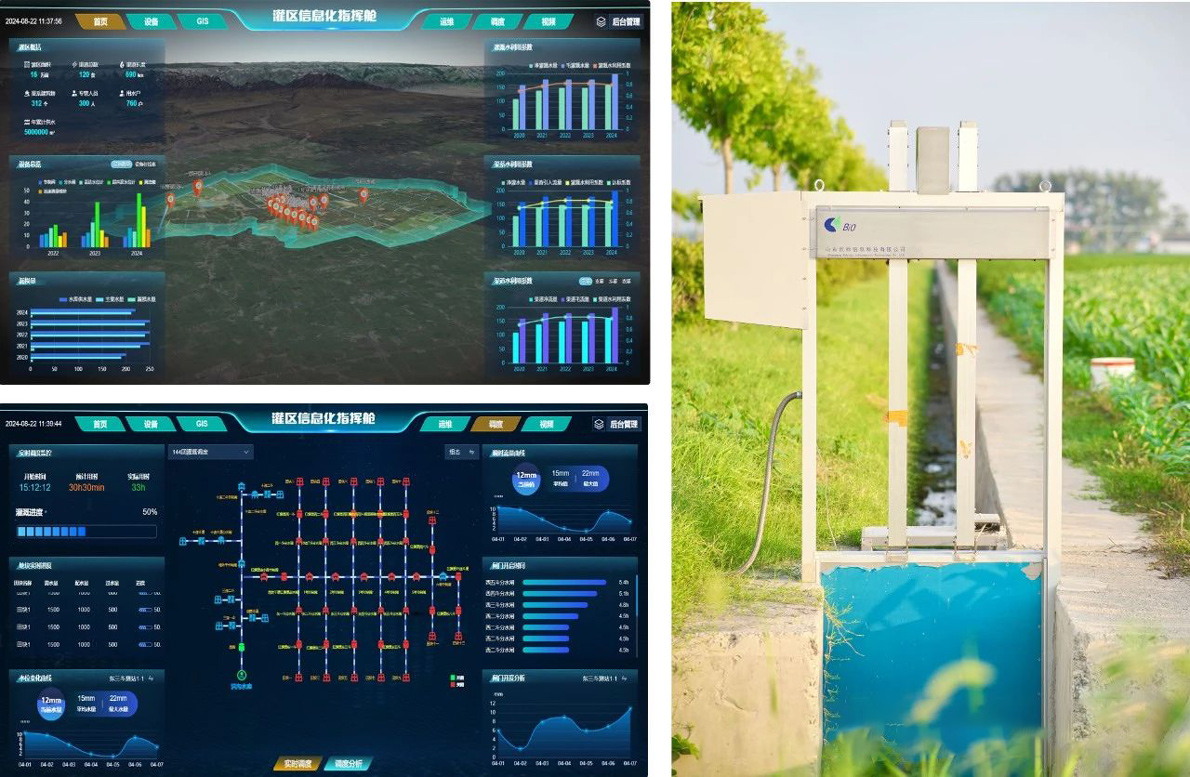

Intelligent measurement and control gate consists of intelligent gate terminal, cloud computing management platform, management software and mobile APP. The management platform controls the opening and closing of the gate according to the crop and preset algorithms, and the managers supervise remotely to realize automated irrigation. The gate system can access data such as water level, flow rate and video.

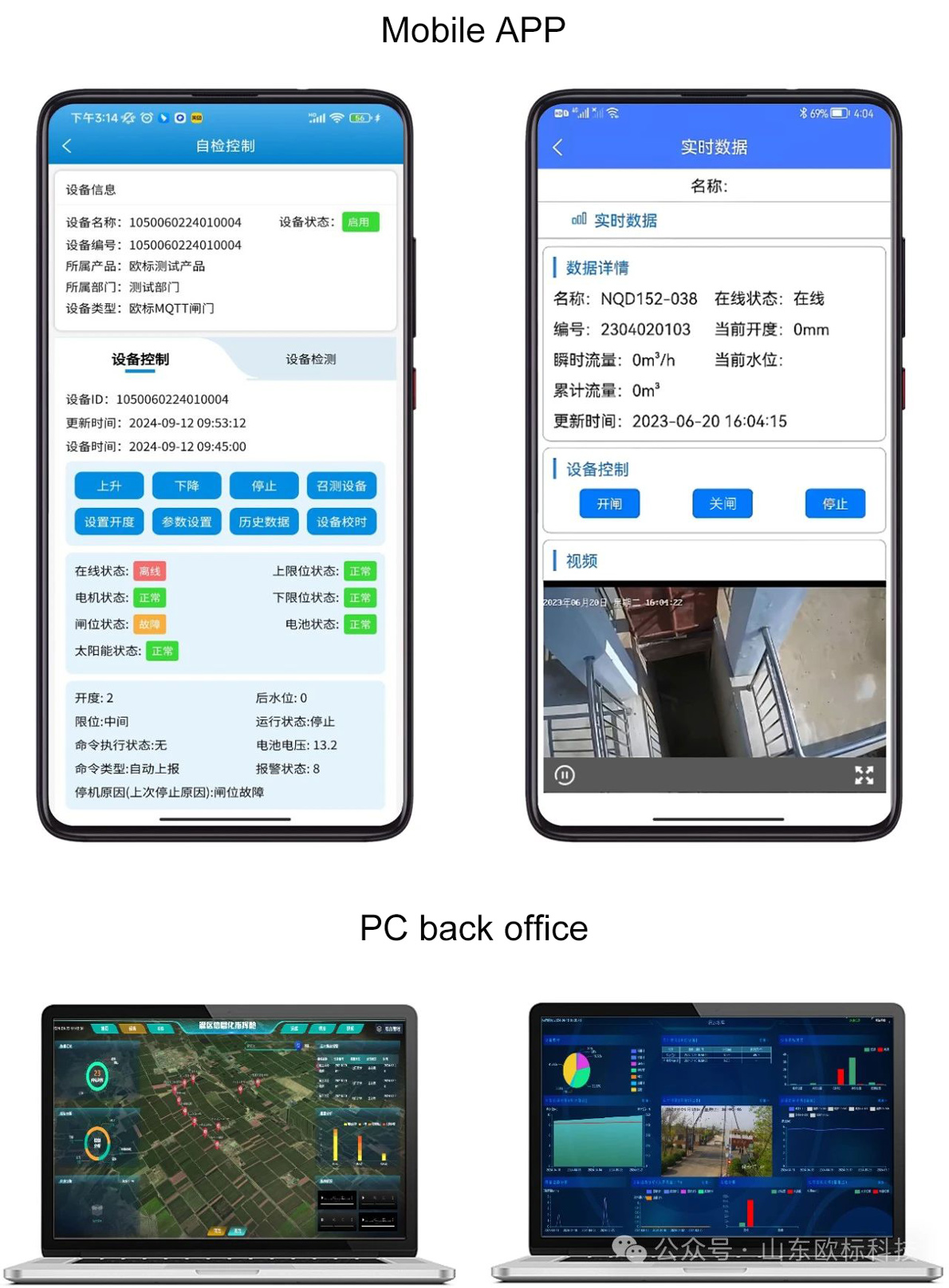

Imagine that no matter where you are, you can remotely control the gate opening and closing with just a tap of your cell phone. Through the cell phone APP, you can grasp the status of the gate anytime and anywhere, realizing the real “farm in the palm of your hand”. Whether it's regulating water flow or controlling irrigation time, everything is under your control.
Rugged and safe

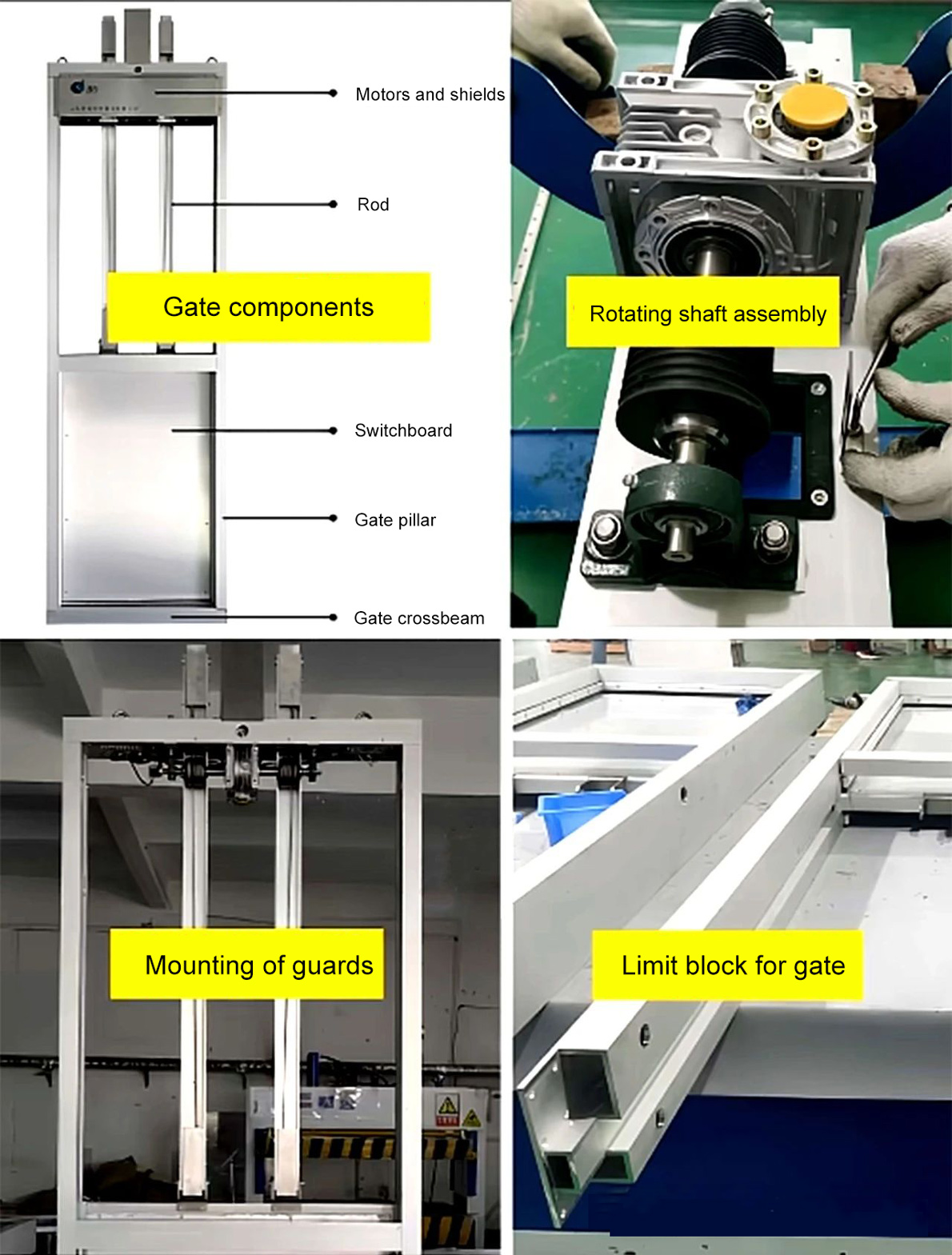

We understand the importance of safety, so the Shandong European standard intelligent measurement and control gate adopts multiple safety protection design. Protective parts, gate level limiting blocks, gate body guards, layers of guards, to ensure that the gate can operate stably even in harsh environments. Meanwhile, the wire rope link controller makes every operation precise and error-free, escorting the safety of your farmland.

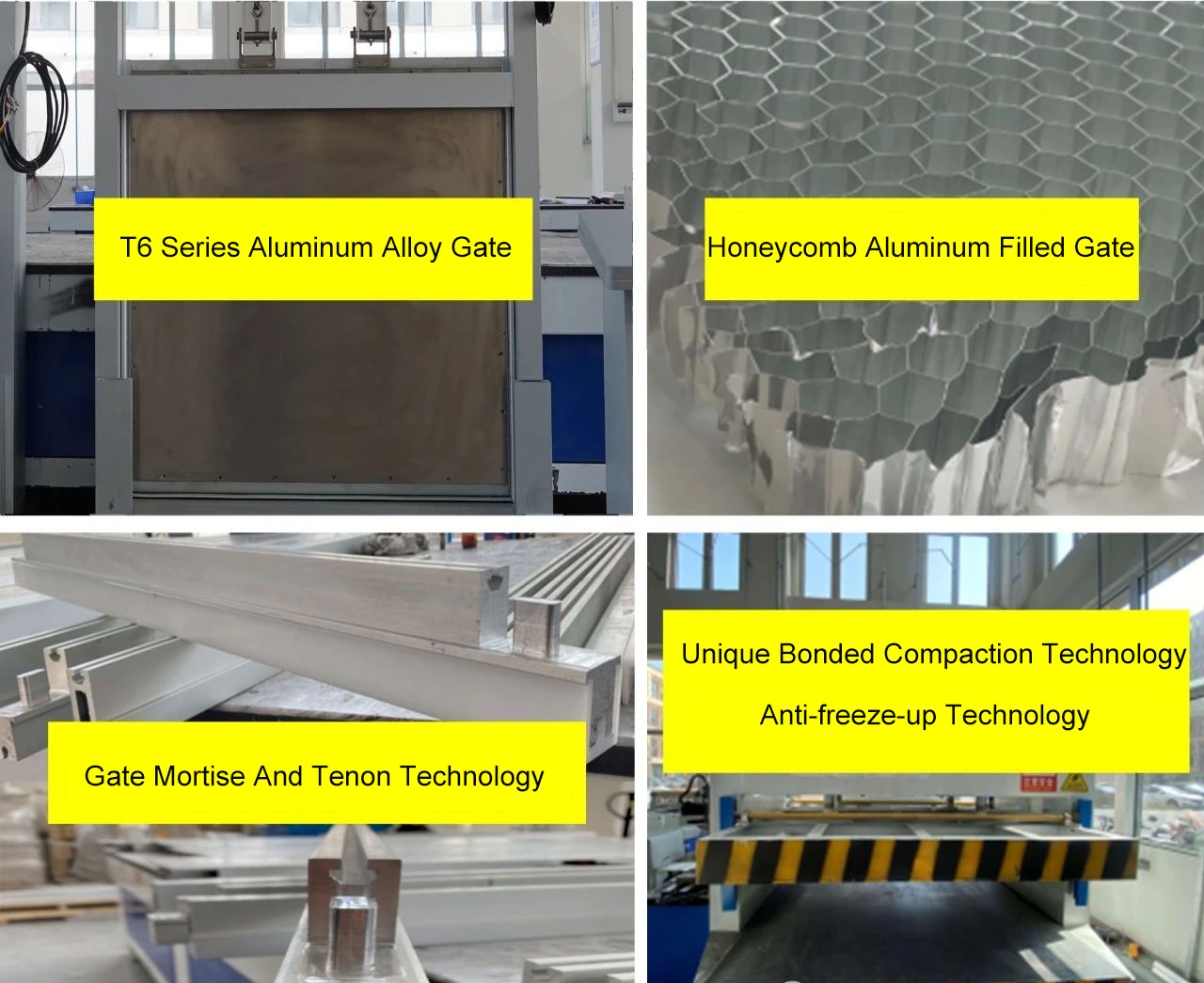

The use of high-strength, corrosion-resistant T6 aluminum alloy manufacturing, to ensure that the gate in the harsh farmland environment can still maintain stable operational performance, extend the service life, reduce maintenance costs.
Energy saving and environmental protection, green first

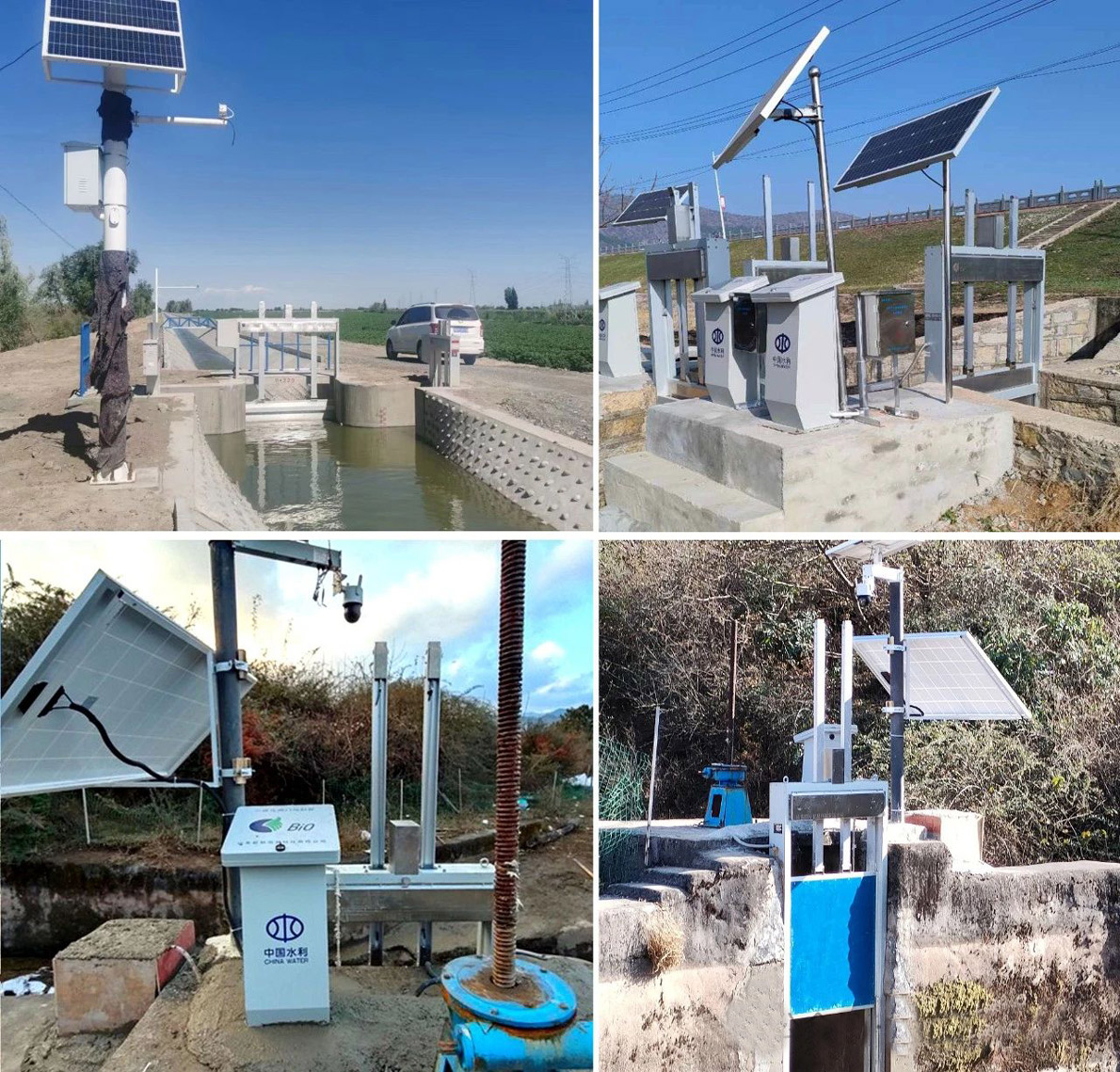

While pursuing high efficiency, we don't forget environmental protection. Shandong Obiao Intelligent Measurement and Control Gate provides reliable power support, effectively reduces the dependence on traditional electricity, supports utility power supply and solar power supply, and helps you create a green and sustainable agro-ecological environment.
Application scenarios in agricultural irrigation

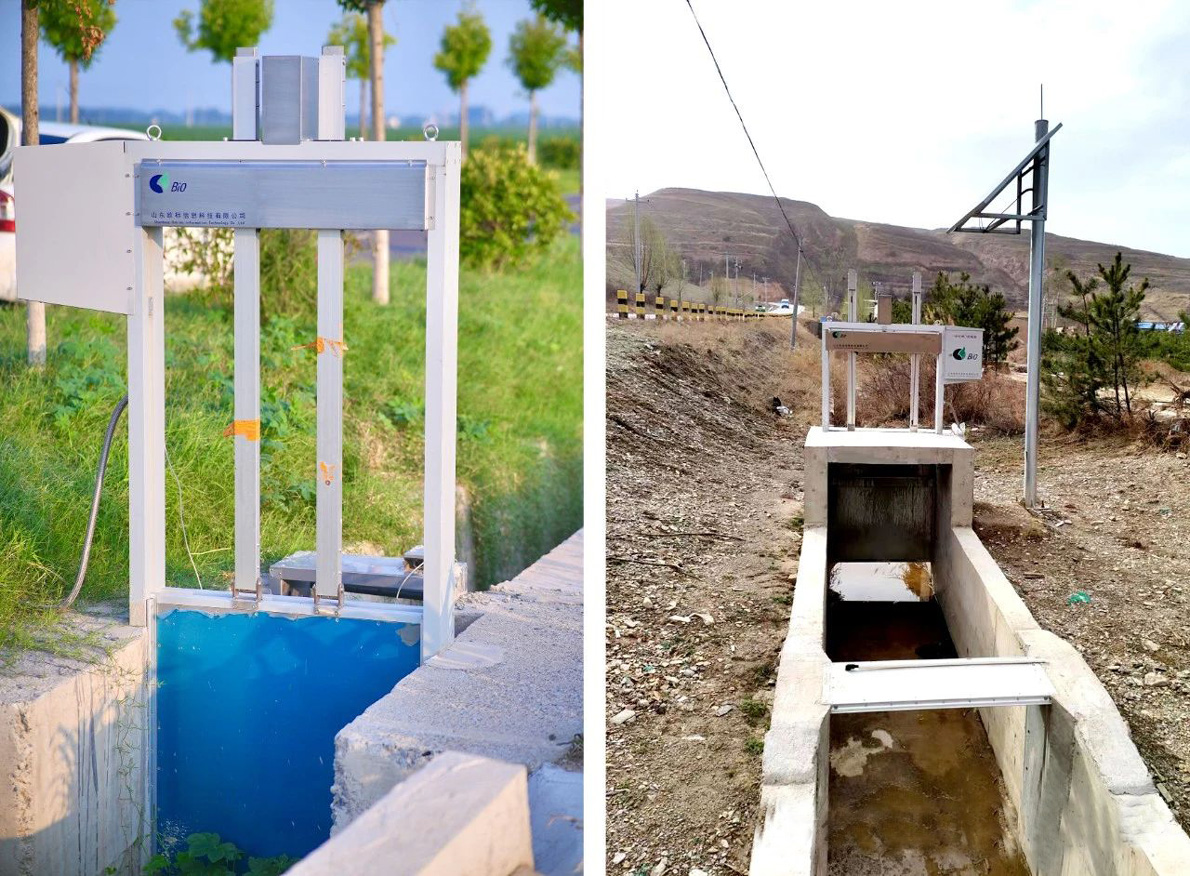

Large Scale Farm Irrigation: For farmland that requires large scale irrigation, the intelligent measuring and control gate can precisely control the water flow in the irrigated area to ensure that each field can be nourished with the right amount of water, thus improving the yield and quality of crops.
Rotational and intermittent irrigation: In the rotational and intermittent irrigation modes, the intelligent measurement and control gate can automatically open and close according to the preset irrigation schedule, providing rotational or intermittent irrigation services for crops in different areas to meet the irrigation needs of different growth stages.
Intelligent measurement and control of one gate technical parameters：
Gate width(mm) | Standard width series: 300 400, 500, 600, 800, 1000, 1200, 1500, 1800, 2000, 2500, 3000 |
Height of baffle plate(mm) | Standard submerged series gate height: 500, 600, 700, 1100, 1300, 1600, 2000, 2500, etc., can be customized |
Stroke of gate(mm) | 200, 300, 400, 500, 600, 800, 1000, 1200, 1500, 2000, etc., OEM |
Opening and closing speed(mm/s) | 60-180 speed adjustable according to load |
Position control precision | 1mm |
Opening and closing force(kN) | 8-80KN |
Working voltage(V) | The system defaults to a 24V drive system, and the farm gate gates default to a 12V drive system |
DC motor power(w) | 1m and below gate 60-120w, 1.2m-2.0m gate 200w2.0m above gate 300W |
Solar panel(w) | Monocrystalline Silicon, Grade A |
Battery(ah) | 80ah-200ah, Colloidal Energy Storage Battery for Solar Energy |
Motor form | Brushed DC motors |
Gate Level Gauge Type | Multi-turn absolute encoders, single-turn resolution 1024/4096/8192, number of turns 64/256/4096 |
Water level meter | Pressure input, ultrasonic, magnetostrictive, electronic water gauge, radar type |
Support for traffic modeling | Water level and flow relationship method: Bashir tank, no roar channel tank, before and after the water level difference method ultrasonic time difference method: cross-multi-channel ultrasonic metering box, multi-layer ultrasonic metering box hydrodynamic method: the water level before the gate, the gate opening method, triangular weir water measurement method; |
Control Models | Constant pre-gate water level mode / constant post-gate water level mode / constant flow mode / opening control mode / manual control mode / IC card swipe mode |
