No mains power required, no worries in remote areas! Intelligent upgrading and transformation of old gates！
No mains power required, no worries in remote areas! Intelligent upgrading and transformation of old gates！
It's time for your traditional gates to be replaced
Traditional gates rely on manual or old electric devices, which are not only labor-intensive, but also hide many "hard flaws" that restrict the efficient management of water resources:
Extensive regulation and control are difficult to quantify: the opening is all based on empirical "estimation", the efficiency of water allocation is low, and the irrigation accuracy cannot be discussed.
Emergency response is half a beat slow: During flood raids, the lag of manual inspections increases the risk of decision-making and operation.
Data "black box" is difficult to schedule: lack of real-time water level and flow monitoring, optimization of irrigation strategies and flood control and drought control are like "blind people touching elephants".
Operation and maintenance costs remain high: manual inspection in remote areas is difficult to cover, wiring cables are difficult, fault response is slow, and management costs are increasing layer by layer.

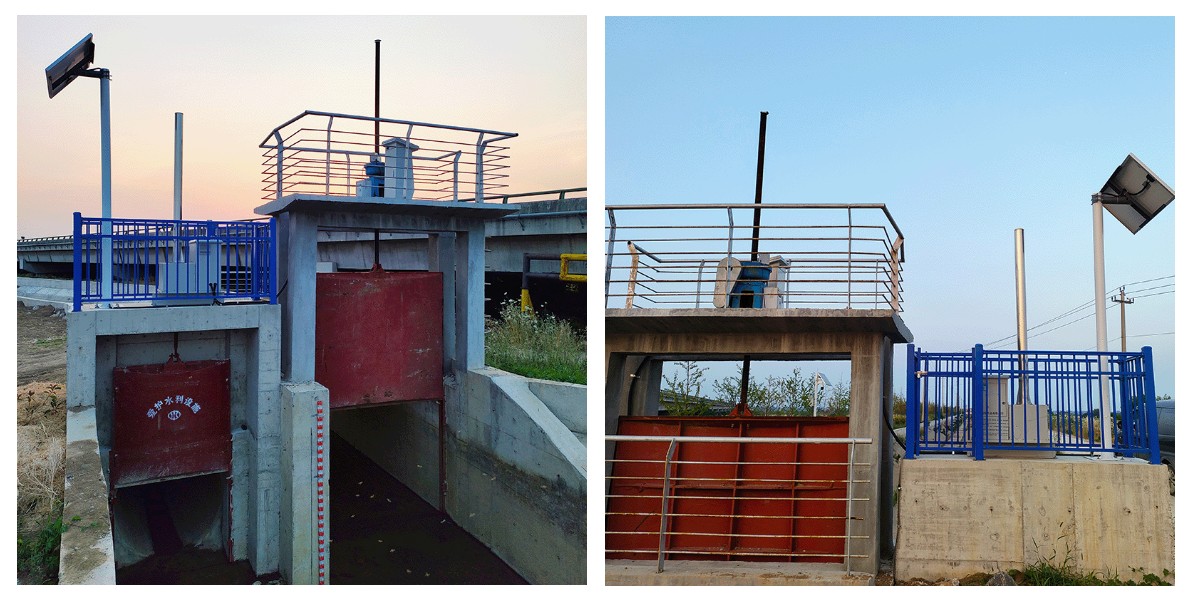

Advantages of sluice gate upgrade
1. Low renovation cost Retain the original gate main structure, customize the electric switchgear, motor and high-strength drive screw according to the gate type, and upgrade the power transmission unit, which is lower than changing the gate.
2. No mains power supply For different sizes of gates, different high-efficiency DC geared motors are configured, and solar power can lift 10 tons of gates, and remote areas do not need mains power supply, further reducing the cost of transformation.
3. High reliability The integrated design of gate encoder and limit protection switch is adopted to achieve accurate detection of gate opening and double safety protection, eliminating the risk of over-position operation.
4. Multiple control modes Support local manual control, automatic program control, remote real-time control and emergency power failure protection to meet the operation needs in different scenarios.
5. Remote data monitoring Real-time collection of gate opening, operating status, limit switch position, water level, flow rate and other parameters, using MQTT and Modbus protocols to encrypt transmission through 4G network.

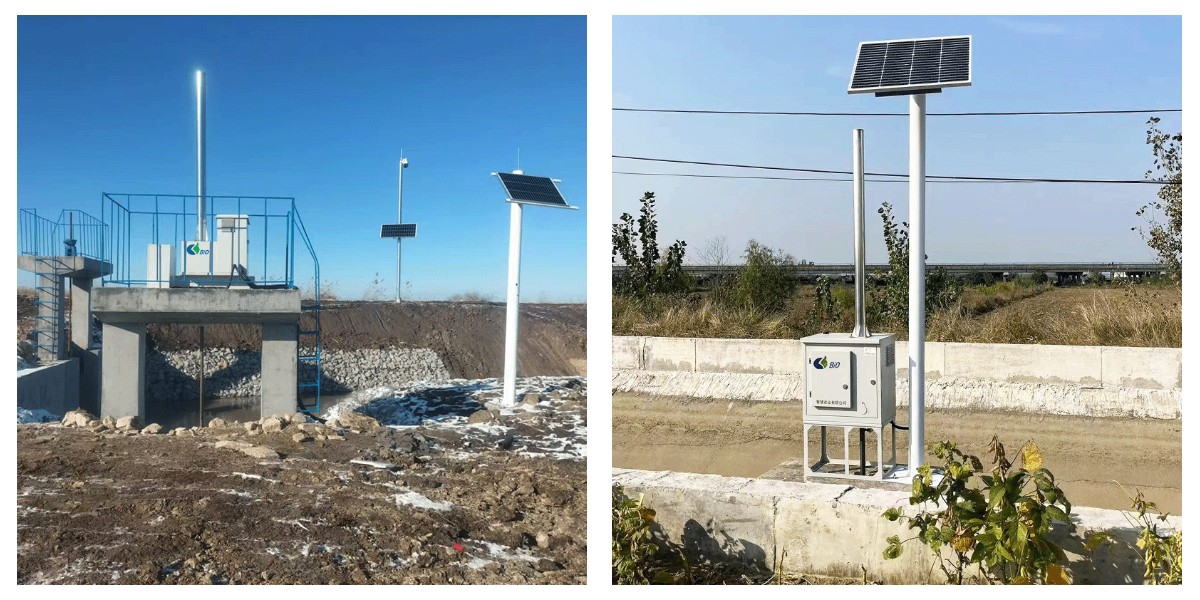

The core weapon of sluice gate transformation - self-sufficient solar power supply system
1.For remote areas without mains power and complex environments, Shandong European Standard innovatively creates an efficient solar power supply mode to completely get rid of the "wire shackles" in remote areas.
High-efficiency monocrystalline silicon solar panels with long-lasting energy output: The photoelectric conversion efficiency ≥ 15%, far exceeding the industry standard. Longevity commitment: 10-year power maintenance rate ≥95%, 20-year ≥80%, long-lasting and stable energy supply. Modular configuration, maximum power of 400W, easy to adapt to 10 ton gates!
2.Intelligent charging "commander", safety guard throughout the process:
Intelligent charging and discharging switching: full charge automatically turns to floating charge/power off, alarm protection when the voltage is too low, to prevent overcharging and over-discharging damage to the battery.
Circuit triple protection: anti-discharge, anti-reverse connection, automatic circuit breaking, not afraid of wiring errors, hardware safety.
Efficient Energy Management: Dynamically optimizes the charging curve with minimal conversion losses, significantly extending battery life.
3. Super environmental adaptability battery, not afraid of severe cold and heat: gel battery / lithium iron phosphate battery optional, capacity customized on demand (according to gate opening and closing load and operating frequency). -30°C to 65°C wide temperature operation: The special box is integrated with moisture-proof and anti-corrosion layer insulation material, and the stable work in severe cold and heat is not wrong. Quadruple safety bodyguard: all-round protection of overcharge, over-discharge, over-current, and short circuit, with fast response and long life.
