New material simplified gate: precise measurement and control, irrigation management upgraded!
In the vast world of irrigation management, there is an increasingly urgent need for precision, efficiency and intelligence. Traditional irrigation methods, such as manually observing water levels and manually adjusting gates, are not only time-consuming and laborious, but also difficult to ensure the accuracy and timeliness of irrigation, leading to frequent problems such as wasted water and uneven crop growth. How to accurately and efficiently irrigate the irrigation area has become an important issue in front of every agricultural manager.
In the face of these challenges, a set of control, measurement in one of the new material simple body gate came into being, it is intelligent, accurate features, for irrigation management has brought revolutionary changes.
The new material simple body gate has the advantages of solar power supply, green energy saving; multiple protection, to deal with extreme working conditions; intelligent adjustment, the error is less than ± 5%; 4G full network, full signal coverage; multi-channel power supply, flexible adaptation; 10-inch touch screen, convenient operation; intelligent cloud platform, remote control; long service life, etc., which really solves the irrigation district for the demand of precision, high efficiency and intelligence.
Gate size(mm) | 300x300、400x400、500x500、600x600 800x800、1000x1000、1200x1200、1500x1500、1800x1800、2000x2000 | Solar Panel(w) | Monocrystalline silicon, A grade. |
Gate height(mm) | 300、400、500、600、800、1000、1200、1500、1800、2000 | Battery(ah) | 65ah-200ah, Colloidal storage battery for solar energy. |
Maximum stroke(mm) | 200、400、500、600、800、1000、1200、1500、1800、2000. | Motor Type | DC motor |
Driving mode | Double lifting point | Support flow model | Water level and flow relationship method: Bashir tank, no roar channel tank, before and after the water level difference method, ultrasonic time difference method: cross-multi-channel ultrasonic metering box, multi-layer ultrasonic metering box, hydrodynamic method: the water level in front of the gate, the gate opening method, the triangular weir water measurement method. |
Working voltage(V) | System default 24V drive system | Control mode | Constant pre-gate water level mode, constant post-gate water level mode, Bodine flow mode, open control mode, manual control mode. |
The new material simplified gate solves the problem of traditional irrigation:
1. Waste of water resources: Traditional irrigation relies on manual experience, which makes it difficult to control the water level and flow rate accurately, and often leads to over- or under-irrigation, resulting in waste of water resources.
2. Problem of manpower dependence: traditional irrigation requires manual inspection and operation, which is time-consuming and labor-intensive, and it is not possible to realize all-weather monitoring, especially in remote areas, where manpower costs are high.
3. Low irrigation efficiency: traditional gate control is imprecise and low irrigation efficiency, which can easily lead to uneven crop growth and affect yield and quality.
4. Inadequate response to extreme weather: traditional gates lack real-time early warning and rapid response mechanism in extreme weather (e.g., heavy rain, drought), which can easily lead to crop damage or even crop failure. 5. Short equipment life and high maintenance costs: traditional gates are made of outdated materials and processes, easy to corrode and wear, short service life, and high maintenance cost. 6.
6. Inconvenient power supply: In remote areas, traditional gates rely on utility power supply, and the inconvenient power supply leads to difficulties in equipment operation.
7. Difficulty in data management: traditional irrigation lacks data recording and analysis functions, making it difficult to realize scientific management.
Solar powered, green and energy efficient
Irrigation gate adopts solar power supply system, combined with battery energy storage, it is self-sufficient on sunny days, providing a constant power for intelligent management of irrigation areas, reducing operating costs and the impact on the environment.
Multiple protections for extreme conditions
All mechanical strength safety coefficients have 5 times margin, power has 4.5 times margin. Adopting turbine-worm gear reducer, with reverse self-locking function, encoder counting, travel switch limit, safety switch power-off control, the error of metering precision is less than 5±%.
Intelligent adjustment with less than ±5% error

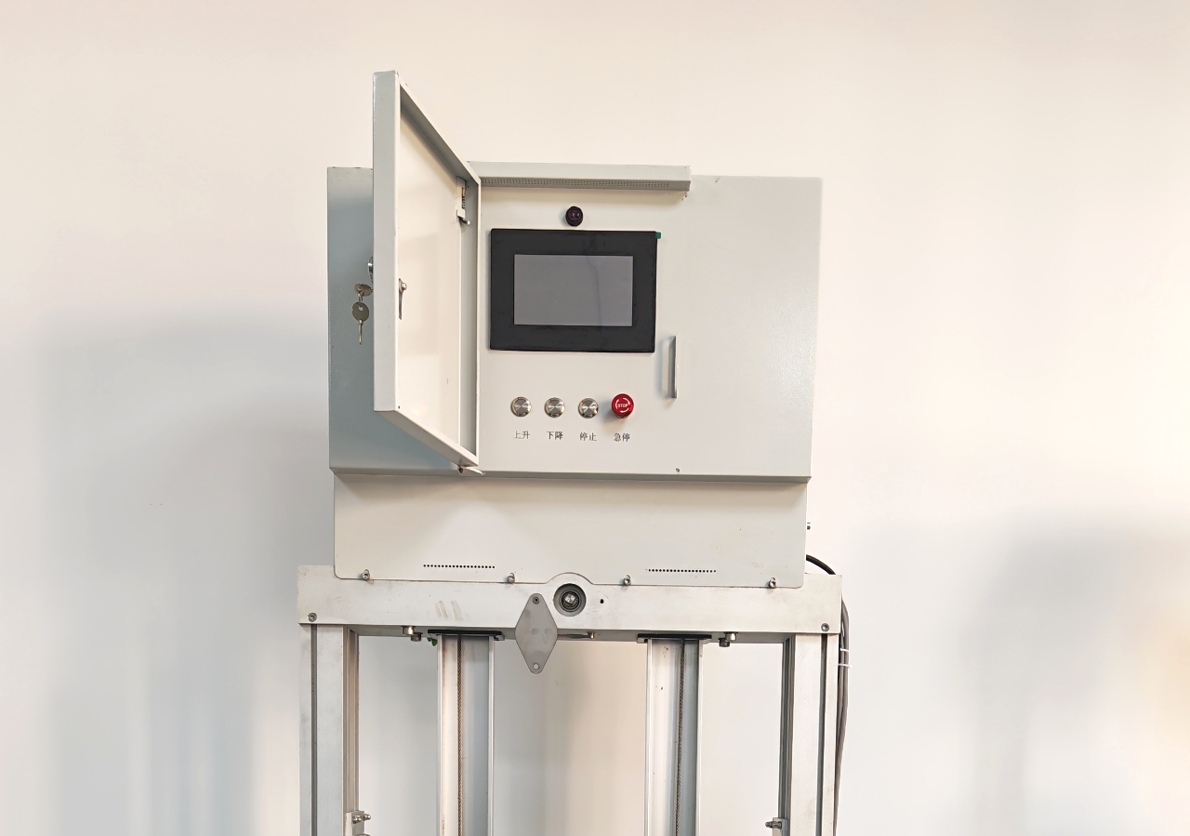

The control cabinet adopts self-developed remote terminal controller, equipped with 10-inch touch screen control panel, supporting electric, manual, remote control multiple modes. Absolute encoder has power failure gate opening memory function to ensure that the data is not lost.
4G full network communication, full signal coverage
Built-in 4G all-network module, support all carriers and all frequency band cards, solve the signal coverage problem, can send and receive SMS and network data at the same time; able to communicate with 4 servers at the same time; with low-power standby function.
Multiple power supplies for flexible adaptation
With 3-way 12V power output, maximum current 200mA, to meet the power supply needs of a variety of peripherals. Built-in solar charge controller for efficient charge/discharge management.
10-inch touch screen, easy to operate
Equipped with 10-inch IPS full view color touch screen, high resolution, rich color, clear display, touch material is pressure type, intuitive and convenient operation. Operating temperature range -40℃ to 70℃, adapt to extreme environment.
Intelligent cloud platform, remote control
The new material simple gate is equipped with an intelligent cloud platform, which allows users to monitor the operating status of the equipment in real time, view historical data, and remotely control the opening and closing of the gate through cell phone APP or computer WEB. The cloud platform also supports data analysis function, providing users with irrigation optimization suggestions.
Long service life, 30 years of worry-free operation

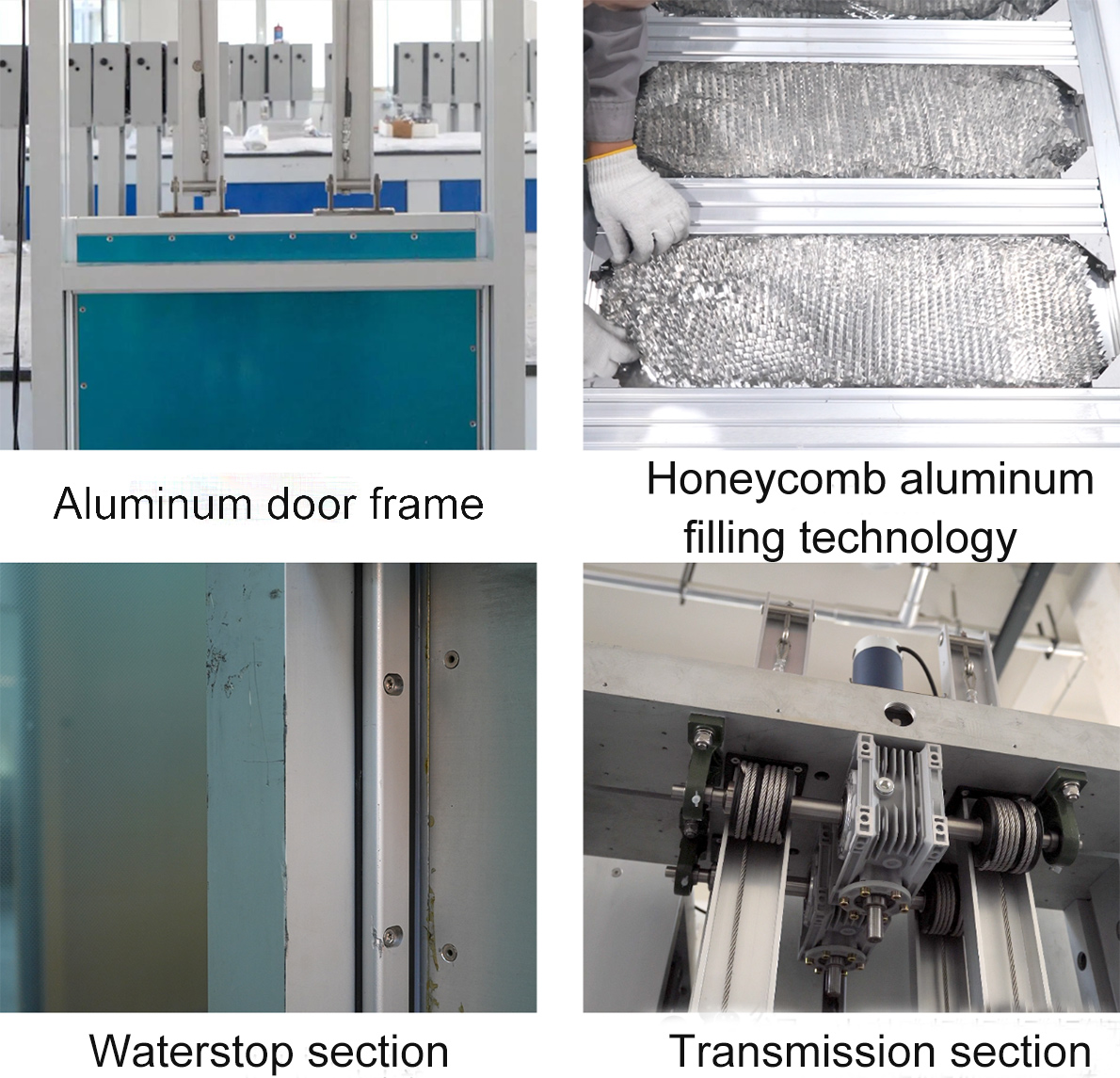

The door frame is made of high-strength aluminum alloy with hard anodized surface, high strength and strong weather resistance; the gate plate adopts honeycomb aluminum strength enhancement technology; the transmission parts are made of high-quality structural steel with chrome-plated surface, which is abrasion-resistant and corrosion-resistant. The water stop adopts silicone rubber sealing, strong weather resistance, anti-aging up to 30 years.

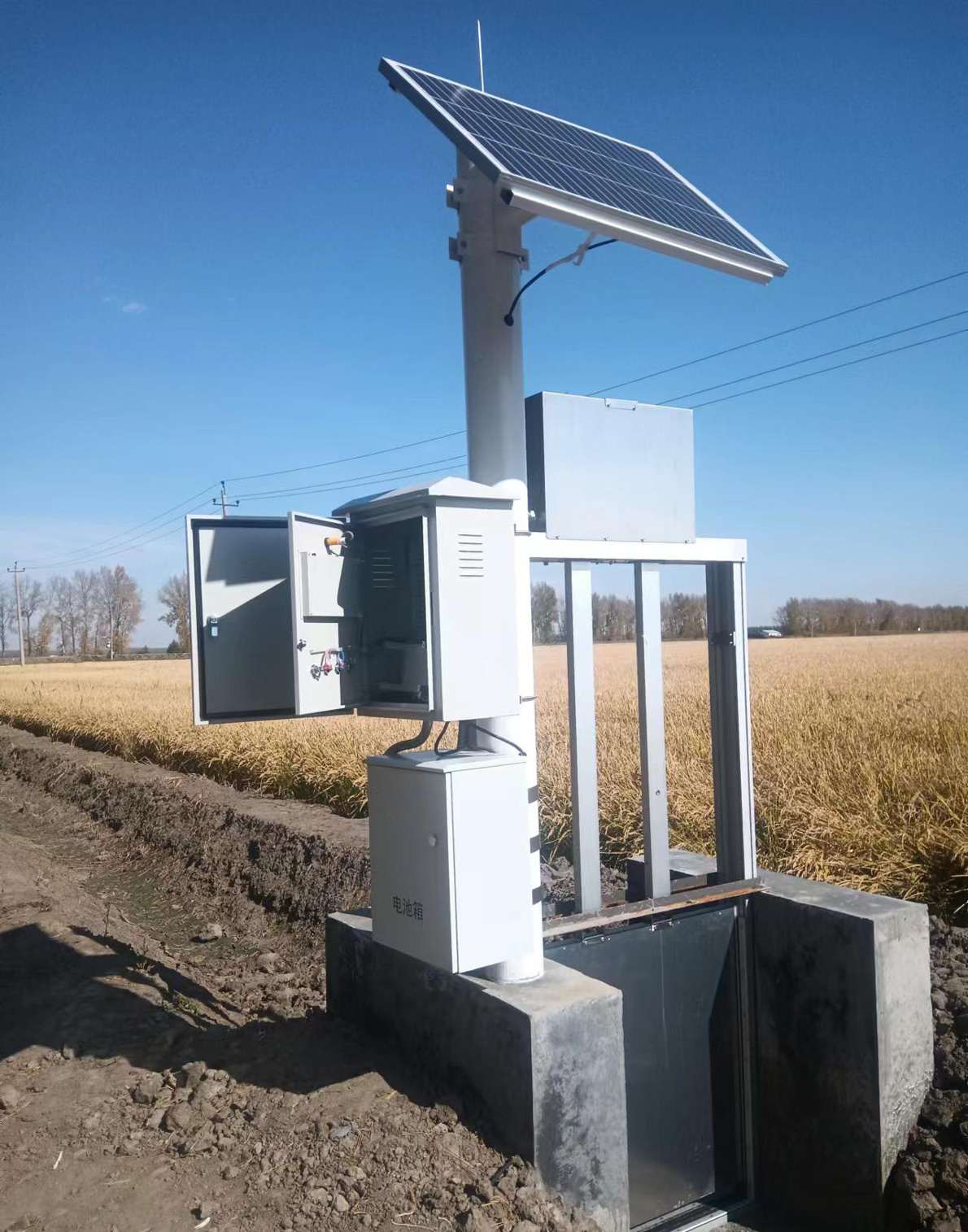

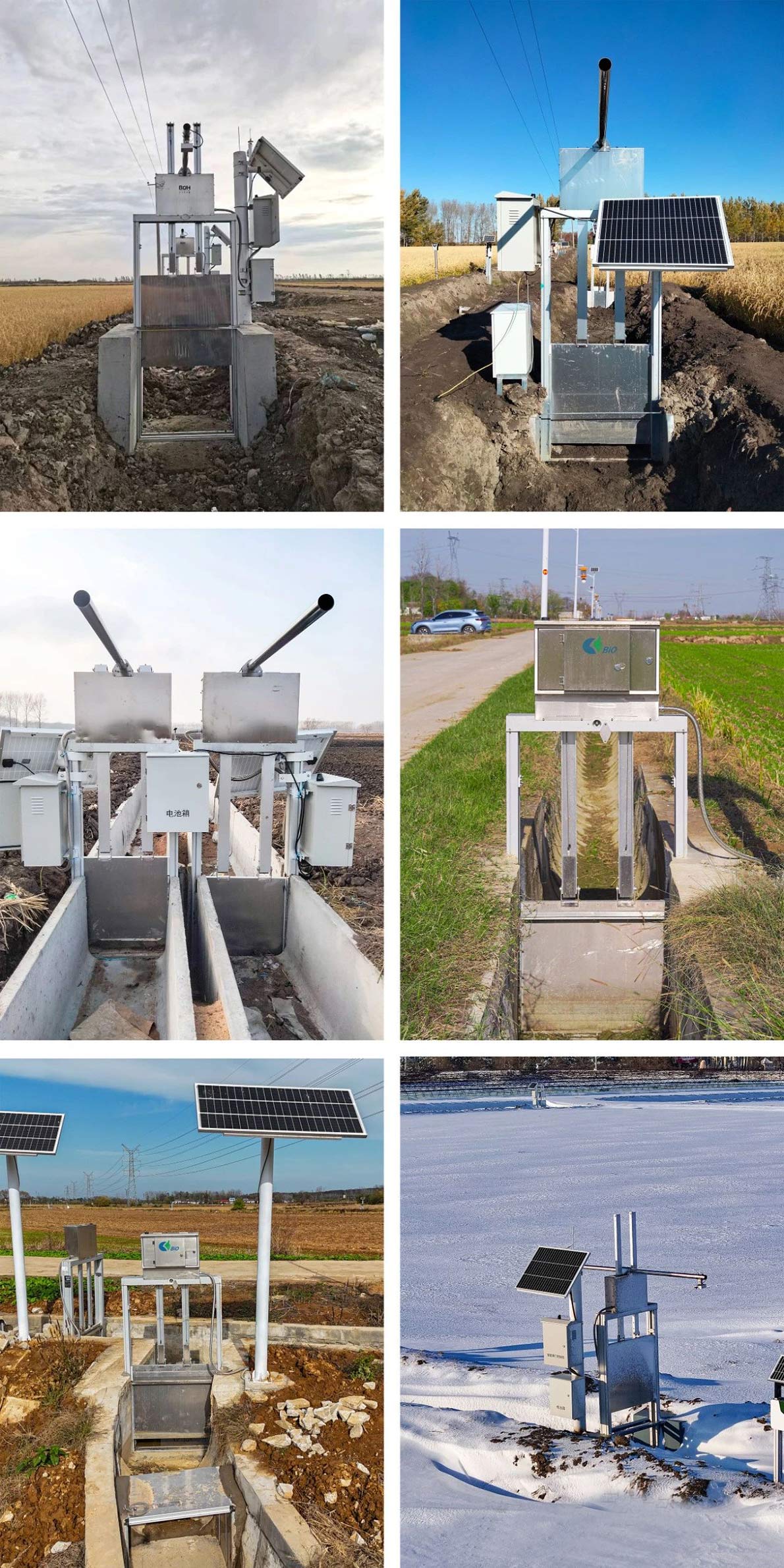

Example of a new type of material simple gate
