Vibration Frequency Insecticidal Lamp
1. Frequency-vibration insecticidal lamps are equipped with multiple functions such as remote control, light control, time control, rain control, temperature control, and tilt protection. The device utilizes physical properties such as light, odor, and high voltage to effectively trap and kill various pests, providing an environmentally friendly and efficient solution for agricultural pest control.
2. The high-voltage power grid is made of arc-resistant coating materials, with a wire diameter of 0.6mm or 2mm. The insect-killing contact grid is designed with horizontal spiral winding or vertical grid connection.
3. A power grid overcurrent short-circuit protection device is installed to prevent the power grid from short-circuiting due to residual insect bodies.
4. Insulation column: It features instantaneous high-temperature resistance up to 1000°C, corrosion resistance, and high-voltage resistance. Even when the high-voltage power grid continuously arcs for 30 minutes in rainy conditions, the insulation column shows no carbonization.

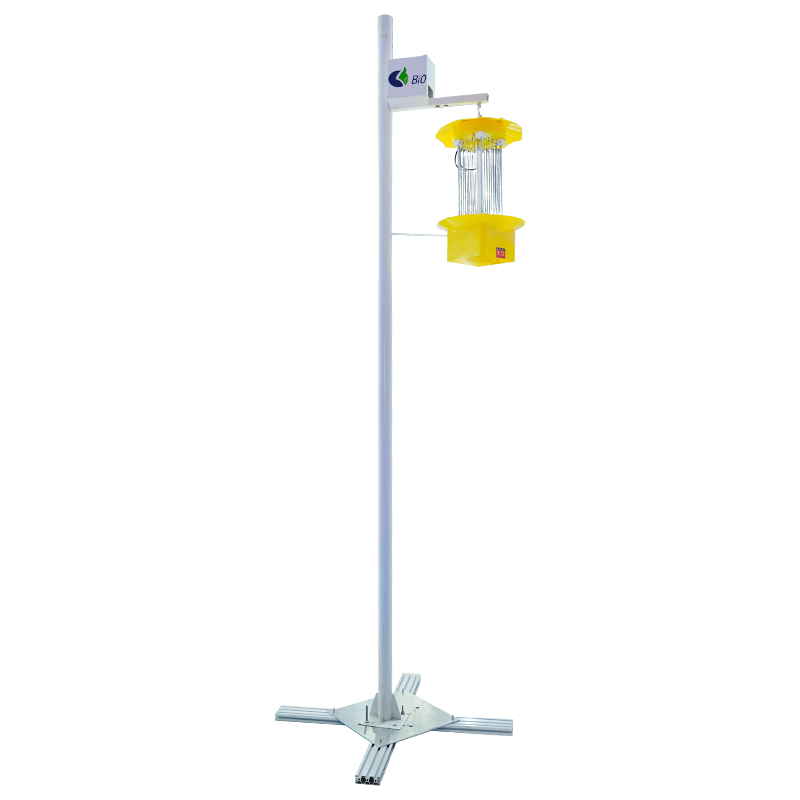

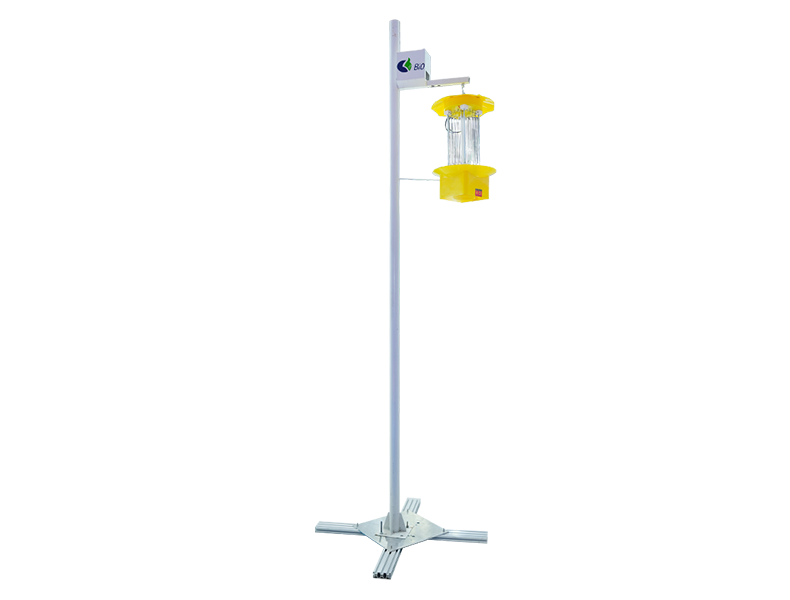

5. With a simple structure, it consists of two main components: the lamp body and the bracket. The entire machine is lightweight, facilitating easy installation and transportation.
Product Overview

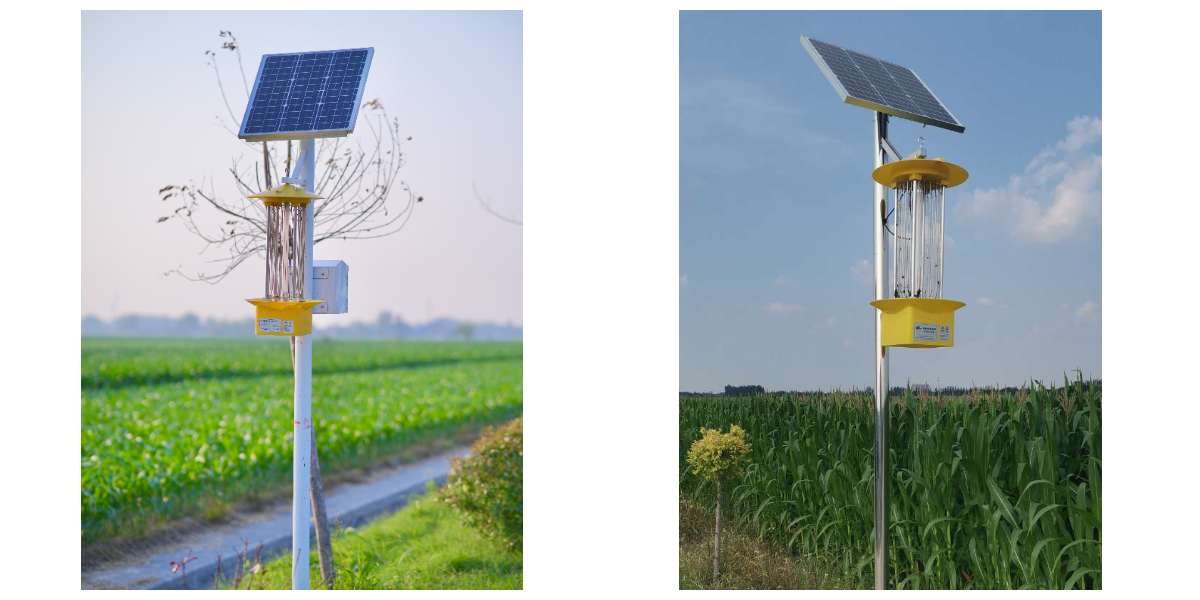

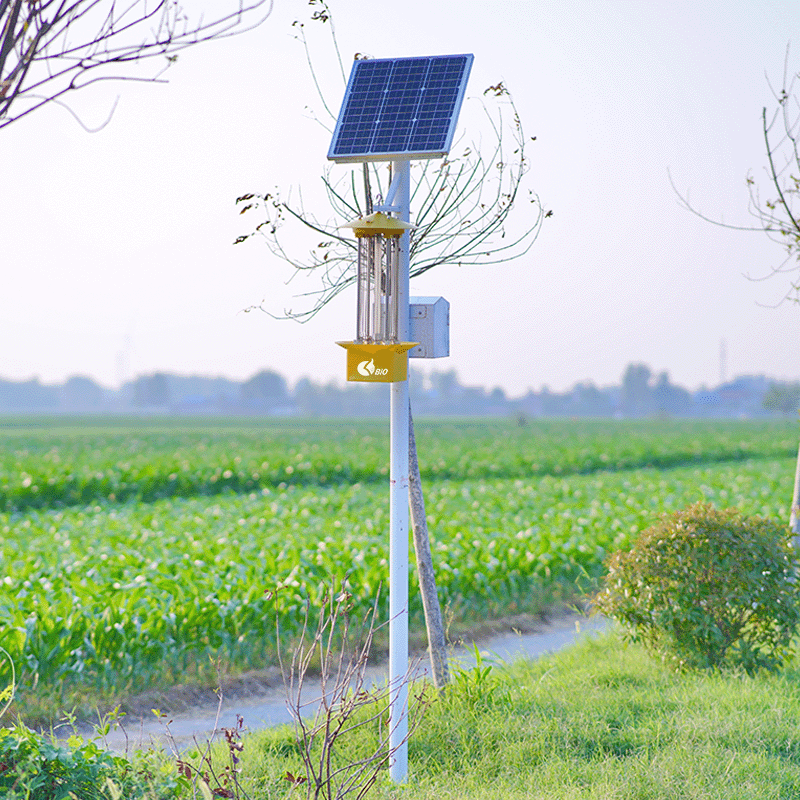

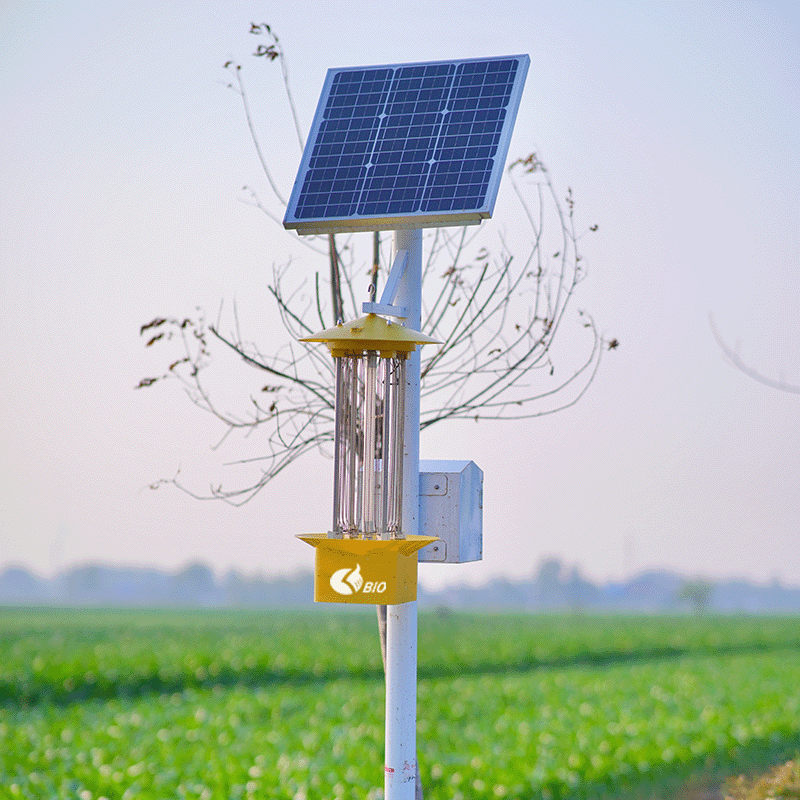

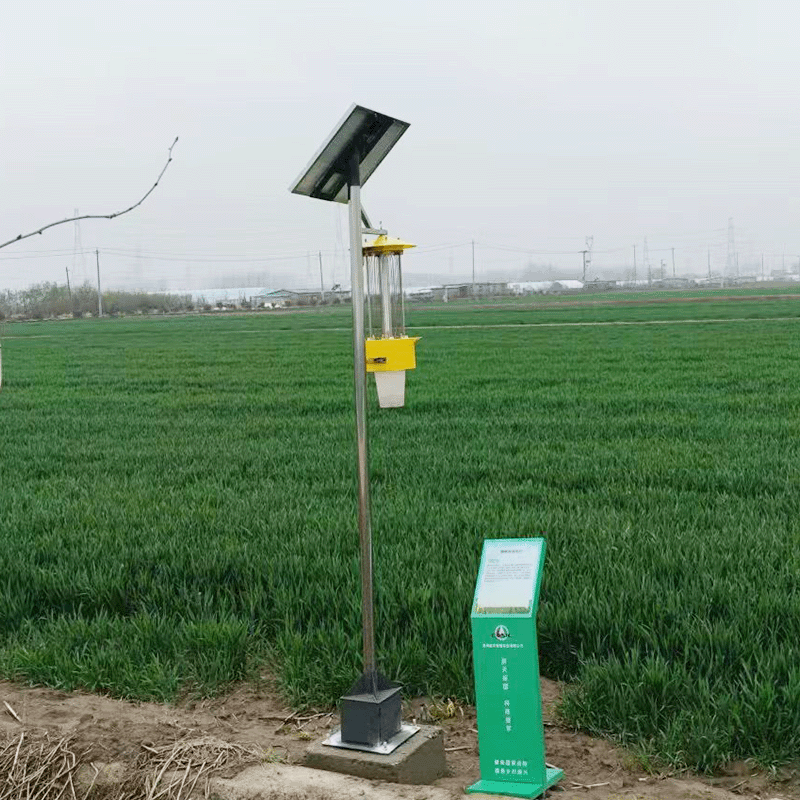

The frequency-vibration insecticidal lamp uses light (short-range) and wave (long-range) to lure adult pests to the lamp. A frequency-vibration high-voltage power grid outside the lamp kills the pests upon contact, causing them to fall into the insect collection bag below. It can automatically complete system operations such as pest luring, killing, and data uploading without human supervision. This product is a frequency-vibration insecticidal lamp powered by a 12V14AH lithium battery, equipped with a 30W solar panel. The solar panel converts light energy into electrical energy, providing an advanced pest control solution for areas where traditional light-based pest control was previously abandoned due to difficult power supply. It can be widely used in agriculture, forestry, horticulture, animal husbandry, urban and rural environmental sanitation, and other industries.
Technical Parameters
1. Complies with GB/T24689.2-2009 *Plant Protection Machinery - Frequency-Vibration Insecticidal Lamp* standard; complies with NB/T34001-2011 *General Technical Conditions for Solar Insecticidal Lamps standard.
2. Trapping Light Source: Frequency-vibration tube (365-680nm), service life >50,000 hours.
3. Tube Start-Up Time: ≤5 seconds.
4. Whole Lamp Power: ≤20W.
5. Tube Power: 5W; Voltage: 12V.
6. Grid Voltage: 5000±115V.
7. Impact Area: ≥0.15㎡.
8. Solar Panel Module: Monocrystalline silicon solar panel, 30W power (optional based on local light irradiation intensity).
9. Battery: DC12V/14AH ternary lithium battery (battery capacity can be selected according to actual needs).
10. Pole Height: ≥1.7-2.0 meters (height can be customized according to actual needs).
11. Pole Material: Stainless steel or galvanized steel (tube material and style can be customized as required).
12. Control Area: 40-60 mu (≈2.67-4 hectares).
13. Recommended Installation Distance Between Two Lamps: 30-60 meters.
14. Design Life: ≥5-15 years (excluding tubes and batteries).
