Anti-silt Gate
Suitable for diversion gates and field water supply channel sluices that control the flow in farmland irrigation ditch systems, capable of remotely operating gates with widths from 200mm to 2000mm;
Can be integrated with platforms for scientific irrigation scheduling;
Real-time monitoring of irrigation progress;
Strong resistance to silt and sediment blockage;
Easy to install;
Low construction cost;
Low maintenance cost;
Simple operation and maintenance.
The anti-siltation intelligent channel gate is a remotely operated, easy-to-drive gate used to control the flow of water at channel and compartment outlets.

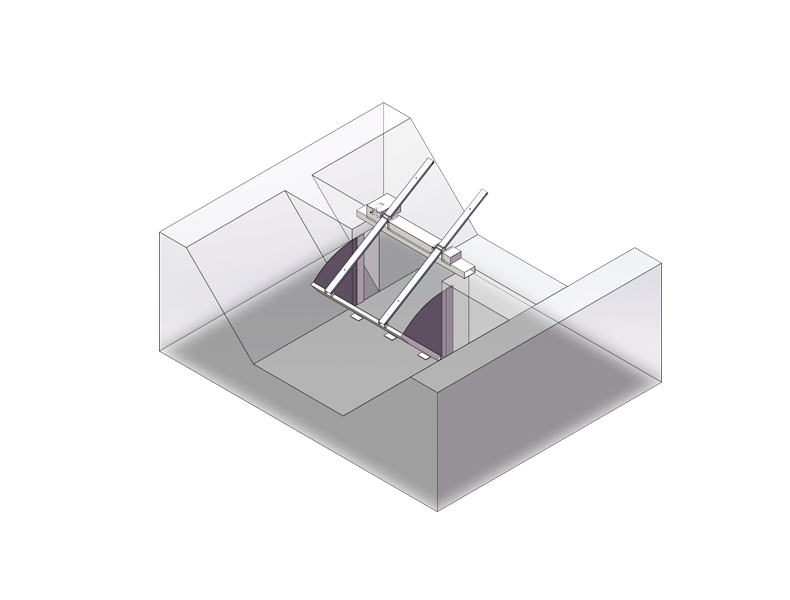

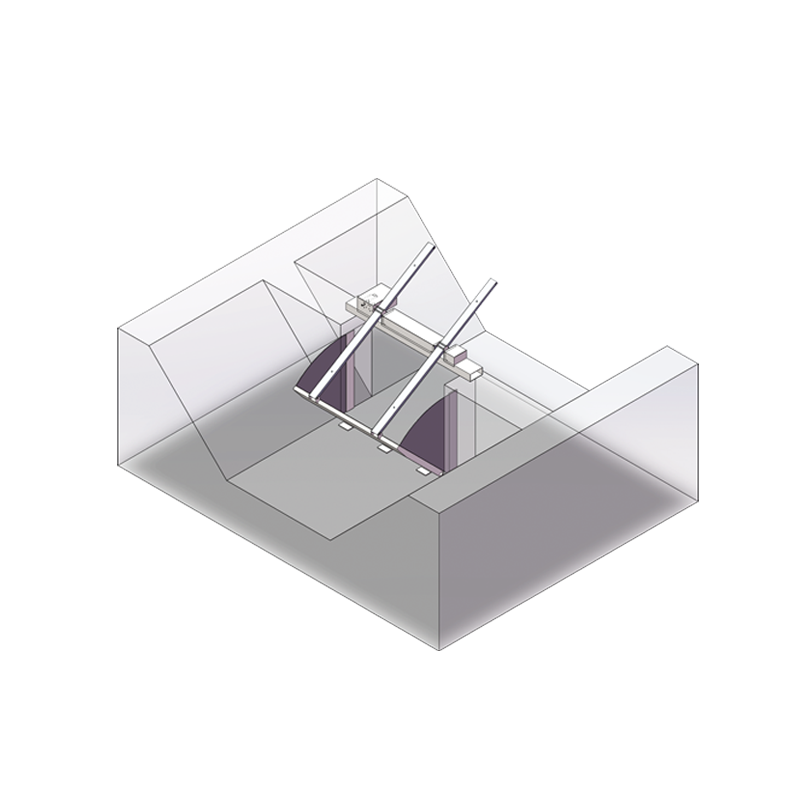

The device is designed for channel and compartment outlets to suit specific water conveyance scenarios. The gate plate is installed at the compartment outlet, the channel flow section, or the outlet, with the top beam mounted above the channel, and the drive component installed at the center of the top beam. Depending on the channel size, corresponding gate kits can be fitted. The device can also be optionally equipped with a level sensor, flow unit, and video unit.
Technical Specifications
Control method | On-site Control / Remote Control |
| Drive mechanism | Stainless steel wire rope and cable drum assembly |
Operating Voltage (V) | DC/AC |
Motor | 12V-24V DC motor |
Power supply | Powered by solar panels, wind-solar hybrid, or AC power options |
Battery | 12V-24V Built-in Lithium Battery / Sealed Gel Lead-Acid Battery |
Solar panel | Adapt the corresponding solar power supply according to the size of the gate |
Control Mode | Constant upstream water level mode, constant downstream water level mode, constant flow mode, gate opening control mode, manual control mode (custom) |
