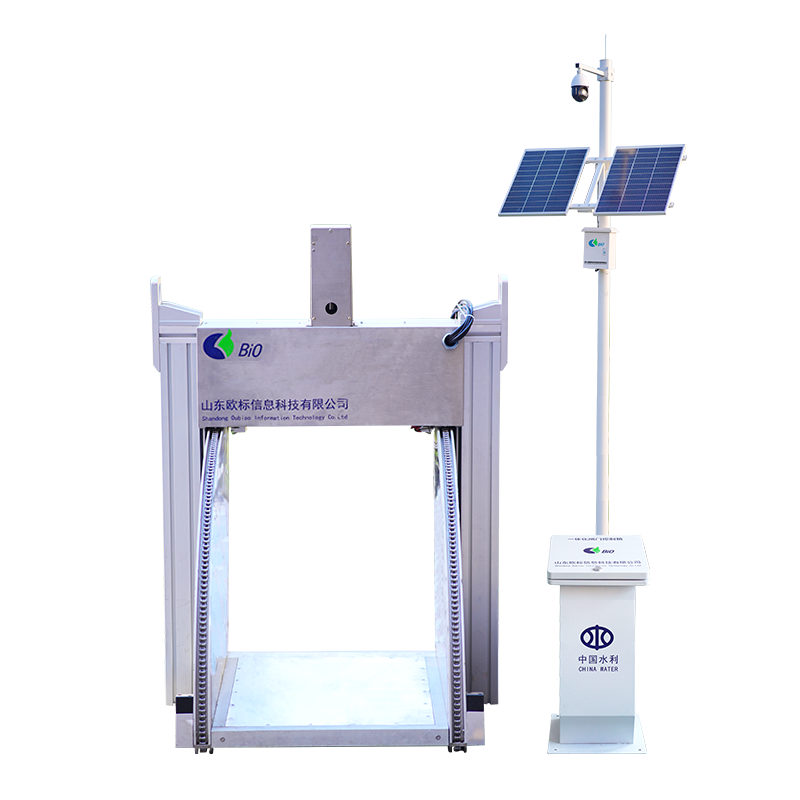

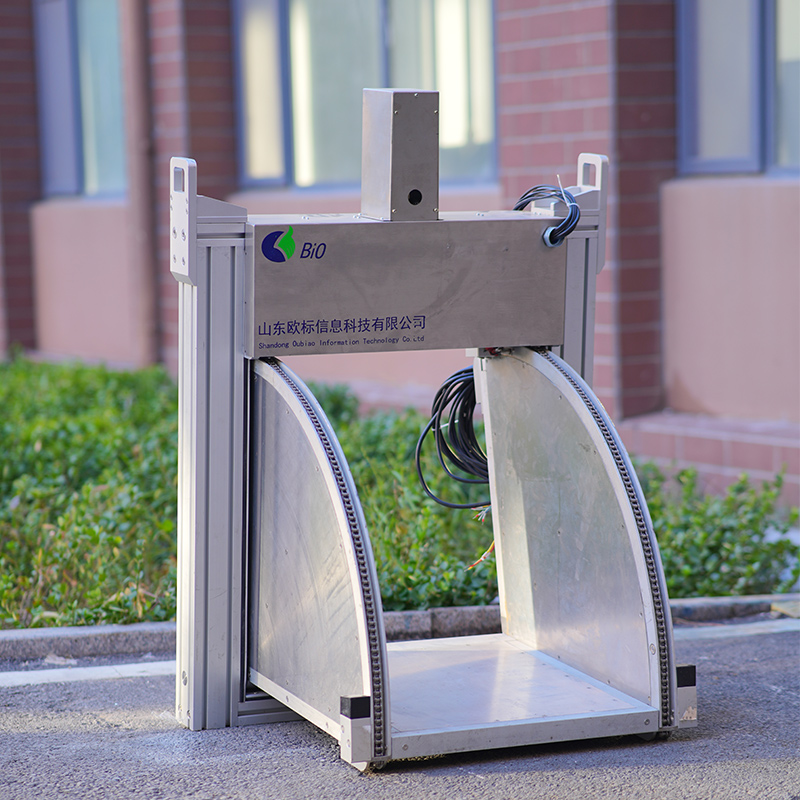

Flume Gate
1. Supports solar power and utility power, flexible and labor-saving deployment.
2. A variety of flow measurement modes, accurate measurement, clear information, good adaptation.
3. Low power consumption of the equipment, long standby time, power saving when working.
4. Precise gate control, low error of gate opening.
5. The product is made of good material. Anti-corrosion, no rust, long life.
6. A variety of gate control modes, according to the flow control, according to the gate opening control, to meet the various needs of users.
Product description:

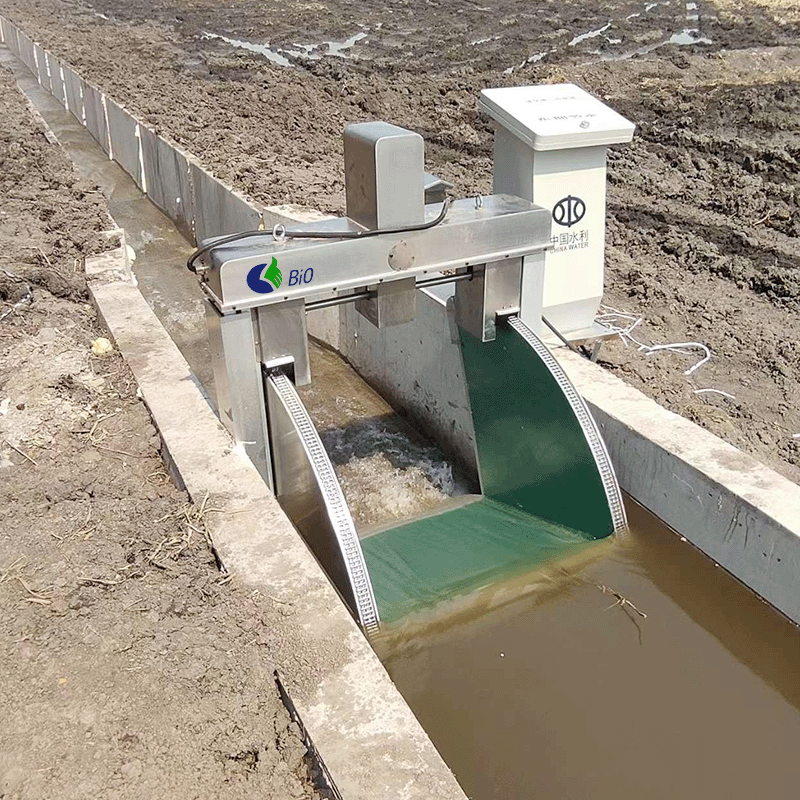

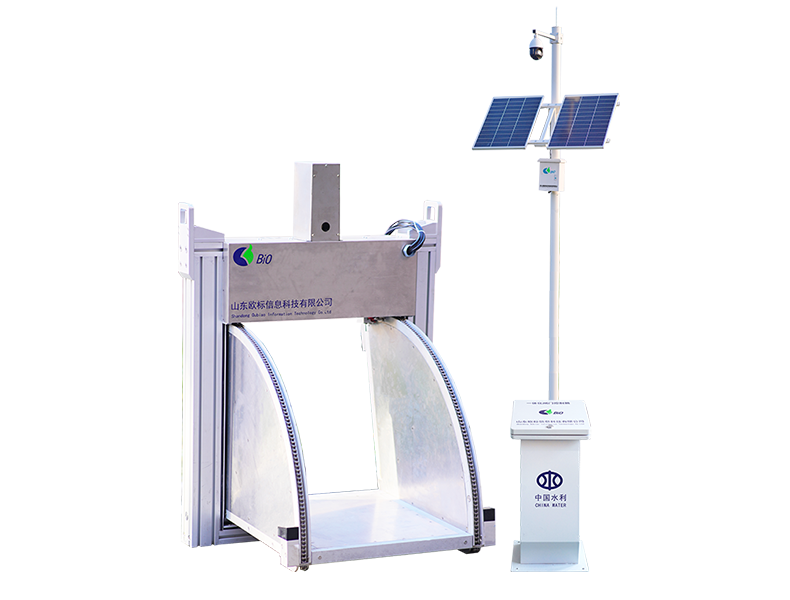

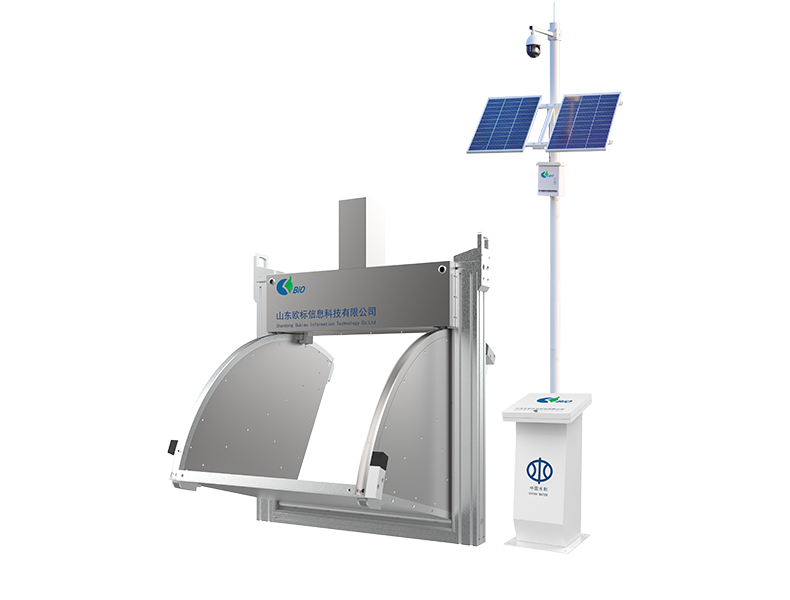

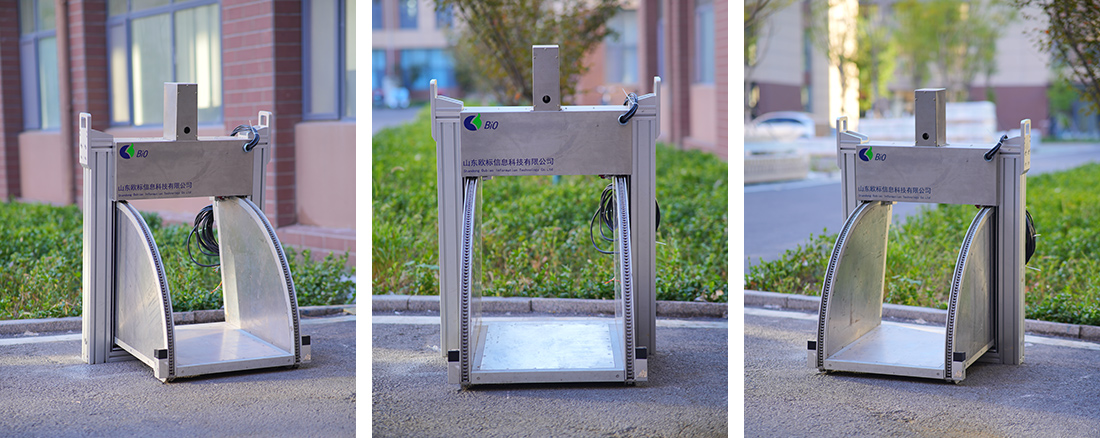

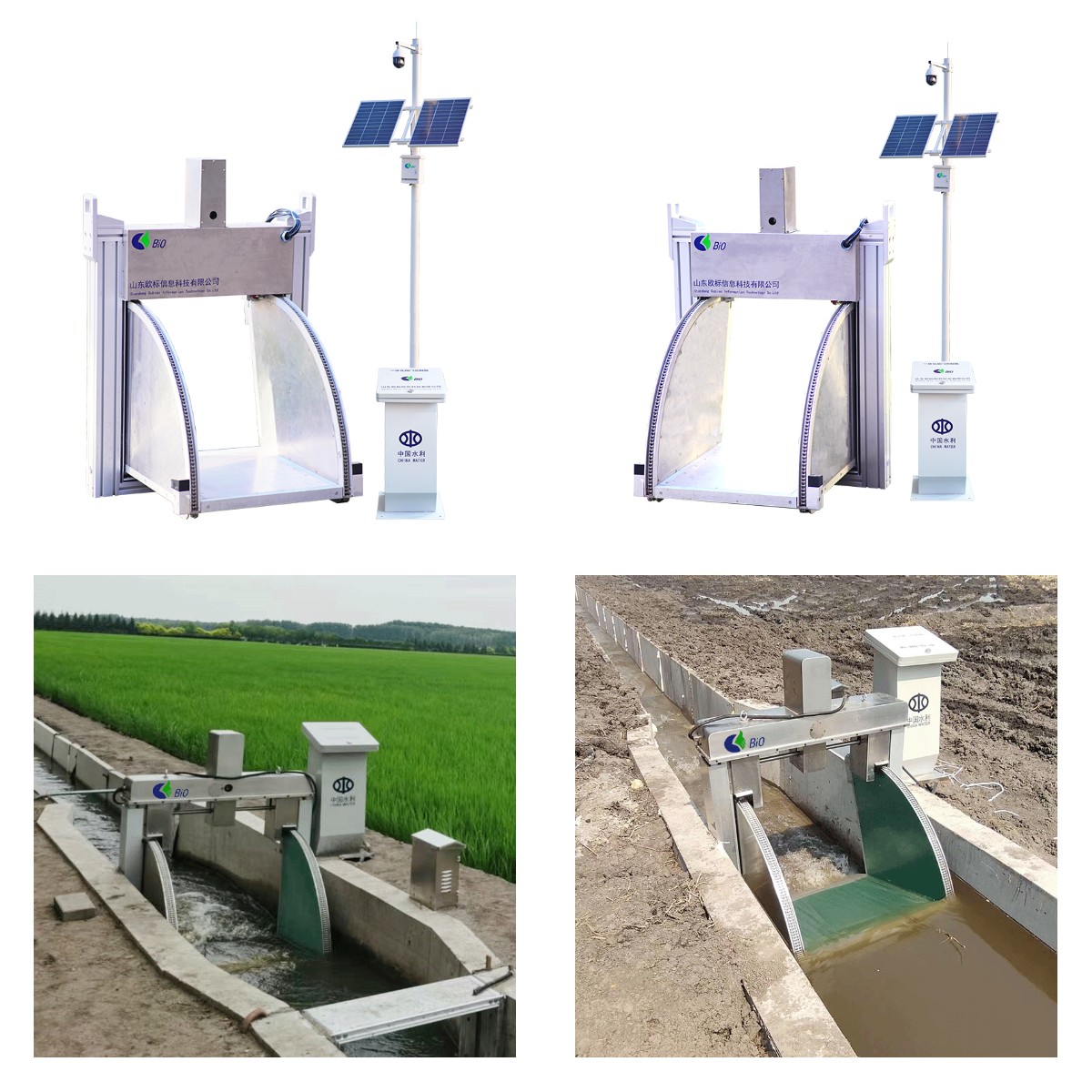

Flume Gate (Intelligent measurement and control integrated gate system), set gate, gate automatic control equipment, channel water level measurement, water flow measurement, IC card prepaid management, video monitoring, wireless network transmission is equal to the integration. According to the site conditions, it can be powered by solar energy or utility power. It is used for control, measurement and charge management of dry and branch buckets and agricultural canals.

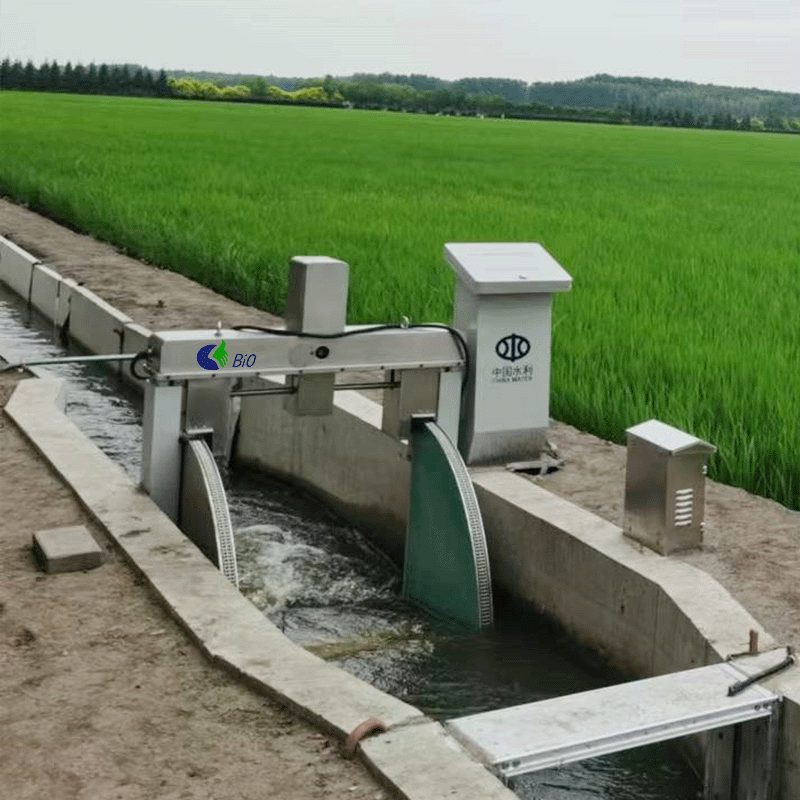

As a kind of metering sluice specially designed for open channel irrigation control, the sluice can be used for flow metering and sluice control. As a kind of advanced equipment for measurement of branch and lateral canals, it will be widely used in the upcoming 2 years and is more advanced and reliable than the method of measuring flow by measuring the water level before and after sluice.
The built-in upstream and downstream water level sensors of sluice can calculate the flow through the measured upstream and downstream water levels and the sluice opening. It can accurately measure water flow according to the design principle of the top weir, so as to satisfy the needs of modern irrigated areas.
Technical Parameters：
Sluice width (mm) | Standard width series: 600, 700, 800, 900, 1,000, 1,100, 1,200 and 1,500, |
Water baffle height (mm) | Flashboard height of standard hole series: 500, 600, 700, 800, 1,000, 1,100, 1,400, etc., customizable |
Flashboard opening (°) | 0°~90°, etc., customizable |
Opening/closing speed (mm/s) | 1-20mm/S, adjustable according to load |
Operating voltage (V) | 24V drive system (default); farm gate sluice (default): 12V drive system |
DC motor power (w) | 60- 120w for sluices 1m and below, 200w for sluices of 1.2 m-2.0m |
Solar panel (w) | Monocrystalline silicon, Grade A |
Battery (ah) | 80ah-200ah, colloidal energy storage battery for solar energy |
Motor form | DC brush motor |
Sluice gauge type | Multi-turn absolute encoder, single-turn resolution 1024/4096/8192, number of turns 64/256/4096 |
Water level gauge | Pressure input, magnetostriction and electronic water gauge |
Flow model supported | Stage-discharge relation method: Basher tank, no-roar tank, front and rear water head method Ultrasonic time difference method: Cross multi-channel ultrasonic metering box and multi-layer ultrasonic metering box Hydraulic method: Water level before the sluice, sluice opening method and triangular weir measuring method; |
Control mode | Constant water level mode before the sluice Constant water level mode after the sluice Constant flow mode Opening control mode Manual control mode |
Selection table of our slot sluice series | Sluice type, sluice opening size, height of flash board, maximum stroke, sluice frame height, driving mode (screw, wire rope and chain), and hoisting capacity |
Product features:
1. Integration, convenient installation, easy maintenance.
2. With 2G/3G/4G/5G, SMS, LoRa, RS485 and other wireless communication methods.
3. With lightning surge protection function.
4. Various metering modes can be selected according to the user's geographical characteristics.
5. Support a variety of nullah metering product access.
6. Human-machine interface with ergonomics. Convenient for on-site operation and data query.
7. Can be controlled by infrared remote control or cell phone APP.
Product functions:

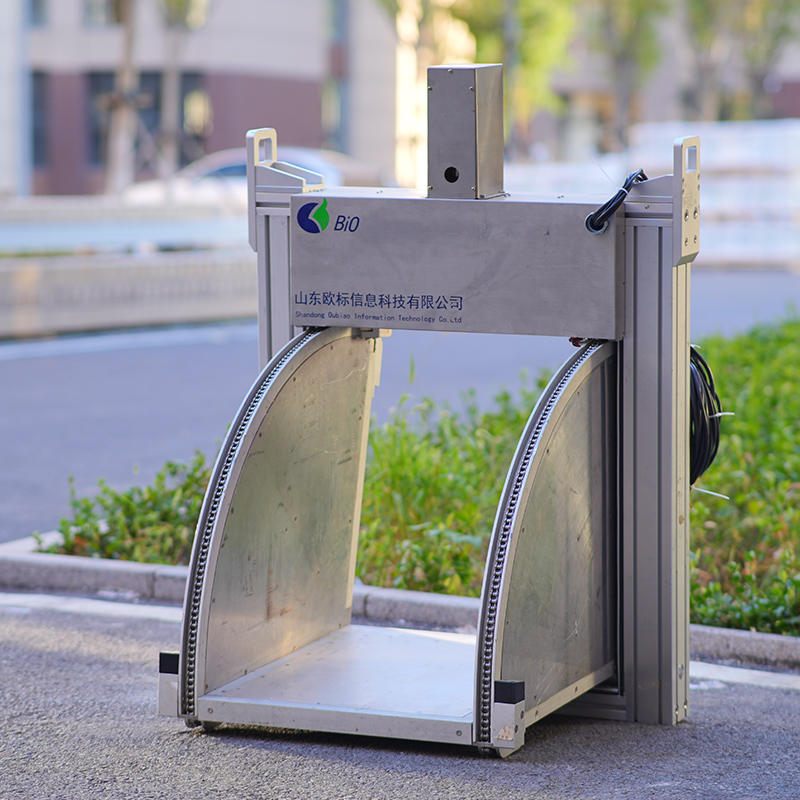

2-lifting-point balanced transmission mechanism can further guarantee lifting reliability. With chain transmission structure, it can be controlled accurately and maintained easily.
Company Strength:
The company was founded in March 2014, specializing in intelligent metrology products and information measurement and control technology research and development, production, sales and service, as well as the development and operation of “industry information management system”.
The company has advanced product development and testing equipment, testing equipment, large-scale modern production equipment, the company's annual production capacity of more than 200,000 pieces of finished products, semi-finished products and so on. The company has a first-class technology research and development team, more than 30 R & D practitioners, are engaged in water conservancy measurement and control and flow measurement industry for many years, with a wealth of experience in the industry. At the same time, the company attaches great importance to and constantly strengthen the cooperation with the relevant specialties of universities, relying on Shandong University, Shandong Agricultural University and other professional colleges and universities with scientific research and theoretical strength for the company to research and develop high-tech, high market applicability of products to provide a back-up guarantee.
