Measurement and Control Integrated Sluice Gate
1. Accurate flow measurement: The flow measurement box is equipped with high-precision sensors, and the flow data error is ≤±2%, which is far better than manual flow measurement.
2. Intelligent linkage: real-time traffic data linkage gate opening, automatically adjust to the preset threshold, and realize unmanned flow control.
3. Remote control: Support wireless communication, can remotely check the status and control the gate, no need to be on duty.
4. Data availability: Automatically store historical data and generate reports to help analyze trends and make scientific decisions.
5. Stable and durable: The flowmeter is waterproof and anti-corrosive (IP68), and the gate components are sealed, adapting to complex environments.
6. Cost reduction and efficiency increase: precise flow control and water saving, automation to reduce labor costs, and improve economic benefits.
7. Safe and reliable: It has multiple protection and alarm functions, and automatically responds to emergencies in case of abnormalities to ensure safety.

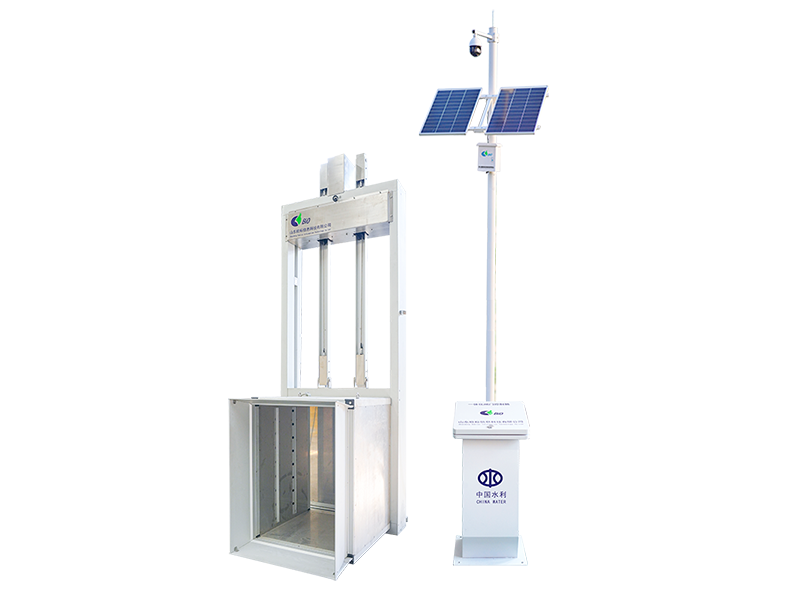

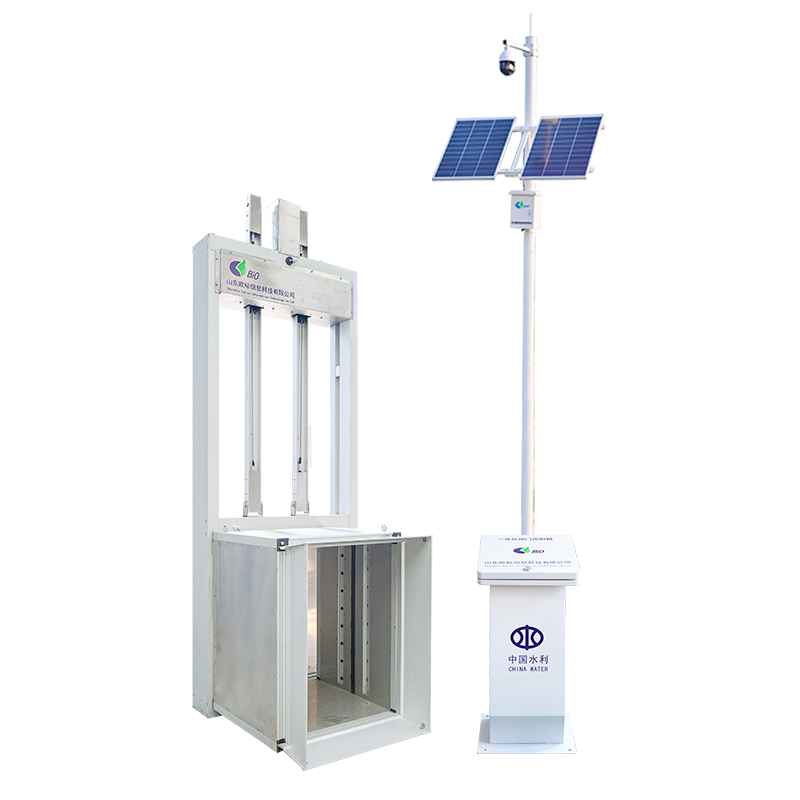

This smart sluice gate with flow meter is an intelligent device that integrates flow monitoring and gate control. It is composed of the gate body, flow meter and intelligent control system, the box flow meter has built-in high-precision sensors to monitor the flow through the gate in real time, and the intelligent system automatically adjusts the gate opening according to the flow data, and also supports remote control, which is widely used in water conservancy, irrigation and other scenarios to achieve accurate and efficient fluid control.
Product Features:
1. Multiple networking functions: wired network/wired 485/4G/Lora wireless.
2. Compatible with a variety of measurement modes: according to the installation position of the current measurement equipment, it is divided into front, middle and rear; The type of flow measurement device can be selected dynamically.
3. A variety of power supply methods: AC, wind and solar complementary, solar power, DC power supply.
4. Multiple control modes: local buttons, local screen, local Bluetooth, remote APP, remote Web
5. Multiple operating modes: manual mode, opening mode, quantitative mode, fixed water level mode, and timing mode
6. A variety of protection measures: overcurrent protection, sensitivity protection, in-place protection, encoder pulse count out-of-bounds protection
7. Millimeter-level opening accuracy: Through the high-precision pulse counter, more than 50 pulses are generated in 1 mm, effectively ensuring the opening accuracy.
8. Low energy consumption: automatic screen shutdown, adaptive frequency reduction work.
9. Double-sided anti-leakage design: Double-sided water-stop rubber design is adopted, with good sealing effect, low friction, and easy to replace.
10. Anti-failure mechanism: the circuit has a watchdog to prevent death, physical power off in place to prevent abnormal occurrence, and emergency hand crank control to prevent no power.
