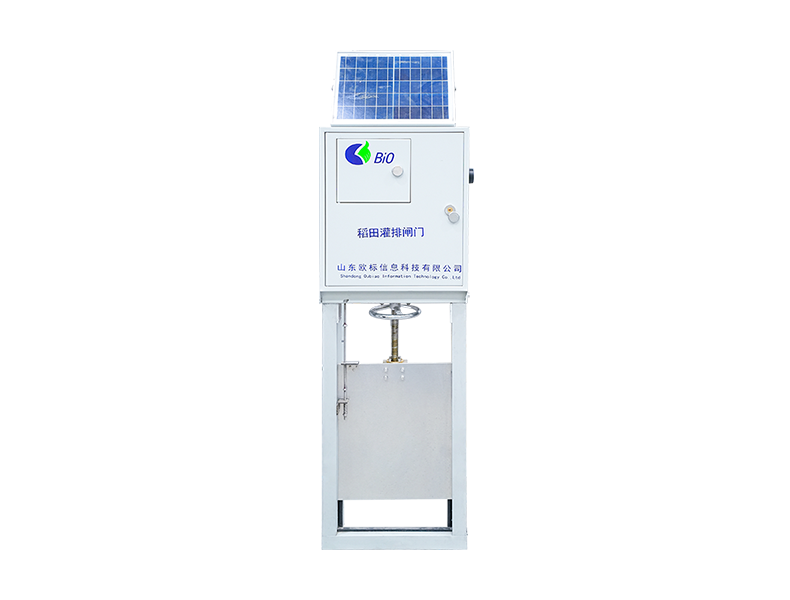

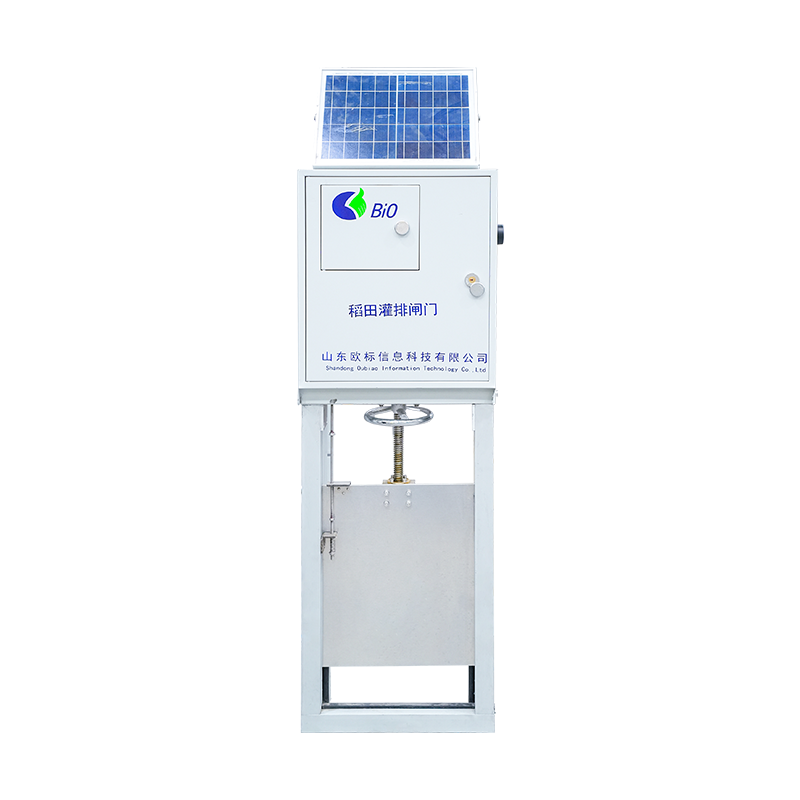

Small Screw Sluice Gates
1. Flexible and convenient installation: small size, light weight, low installation space requirements, can easily adapt to small channels, farmland irrigation outlets, and other narrow scenarios.
2. Precise fine-tuning control: The screw drive structure with intelligent control system can realize millimeter-level opening adjustment.
3. Simple and intelligent operation: support local buttons and remote APP/platform control, one-click start-stop or set target opening, the system automatically completes the adjustment, no professional skills required, suitable for farmers.
4. Low energy consumption and long battery life: small drive power, with low-power intelligent module, external mains power or solar power supply can operate stably.
5. Strong and durable structure: The screw and gate panel are made of anti-corrosion materials, with good sealing performance, which can resist the wear and tear of sediment and debris in small channels, with a long service life and low failure rate.
6. Strong adaptability: It can be linked with small flow meters and water level sensors to form a small intelligent water conservancy control system to realize automatic closed-loop control of "water level-flow-gate".

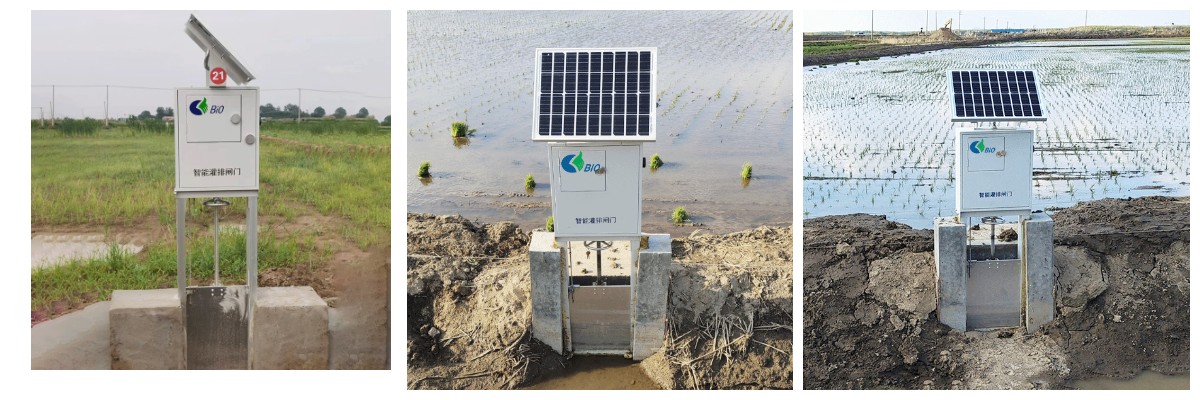

0BPZ series intelligent integrated gates are suitable for water resource control, water volume scheduling, etc. of main canals, branch canals, bucket canals, and gross canals. The whole series of intelligent gates are composed of gates, control systems, power supply systems, cloud computing management platforms, management software and mobile APPS. The management platform controls the opening and closing of the gate according to the crop and preset algorithm, and the management personnel supervise remotely to realize automatic irrigation. The gate system can access water level, flow, video and other data, which fully meets the needs of current irrigation area informatization.
It supports a variety of flow metering methods and data transmission protocols, and can select the most convenient module for measurement and control networking according to the field environment. The big data is reported to the management platform in real time, and the system automatically generates a variety of reports, with an ergonomic management interface, which is convenient for the management department to use the data for research and judgment in a timely manner.
Product Features:
1. Multiple networking functions: wired network/wired 485/4G/Lora wireless.
2. Compatible with a variety of measurement modes: according to the installation position of the current measurement equipment, it is divided into front, middle and rear; The type of flow measurement device can be selected dynamically.
3. A variety of power supply methods: AC, wind and solar complementary, solar power, DC power supply.
4. Multiple control modes: local buttons, local screen, local Bluetooth, remote APP, remote Web
5. Multiple operating modes: manual mode, opening mode, quantitative mode, fixed water level mode, and timing mode
6. A variety of protection measures: overcurrent protection, sensitivity protection, in-place protection, encoder pulse count out-of-bounds protection
7. Millimeter-level opening accuracy: Through the high-precision pulse counter, more than 50 pulses are generated in 1 mm, effectively ensuring the opening accuracy.
8. Low energy consumption: automatic screen shutdown, adaptive frequency reduction work.
9. Double-sided anti-leakage design: Double-sided water-stop rubber design is adopted, with good sealing effect, low friction, and easy to replace.
10. Anti-failure mechanism: the circuit has a watchdog to prevent death, physical power off in place to prevent abnormal occurrence, and emergency hand crank control to prevent no power.
